LNESOGFB SeriesRC65WACF
FB65WAC
A flat, thin-bodied 65W Type‑C + USB‑A GaN charger for low-profile outlets and travel kits.
Get Wholesale Quote
Opens WhatsApp with model FB65WAC pre-filled.
Max output
65W
Ports
Type-C + USB-A
PPS
5–20V ⎓ 3A
Highlights
65W Type-C + USB-A
Flat-Thin Body
PPS 5–20V ⎓ 3A
Flat-thin body, up to ~93% efficiency (varies by load).
Specifications
Input
AC 100–240V ~ 50/60Hz, 1.3A Max
Ports
Type-C + USB-A
Shared mode
Type-C + USB-A: 5V⎓3A / 9V⎓3A / 12V⎓3A / 15V⎓3A / 20V⎓2.25A (45W max) + USB-A 5V⎓2.4A.
Protocols
PD 2.0, PD 3.0, PPS, QC 2.0, QC 3.0, SCP, AFC/ACF, FCP, Apple 2.4A
Certifications
CCCCE (LVD)CE (EMC)FCC (SDoC)RoHSUL report
Plug options
Foldable US, CN, EU, UK
Actual performance depends on device, cable, and load. Certifications may vary by region.
Output profiles
Type‑C
5V ⎓ 3A9V ⎓ 3A12V ⎓ 3A15V ⎓ 3A20V ⎓ 3.25A
USB‑A
5V ⎓ 3A9V ⎓ 3A12V ⎓ 2.25A20V ⎓ 1.35A
PPS
5–20V ⎓ 3A

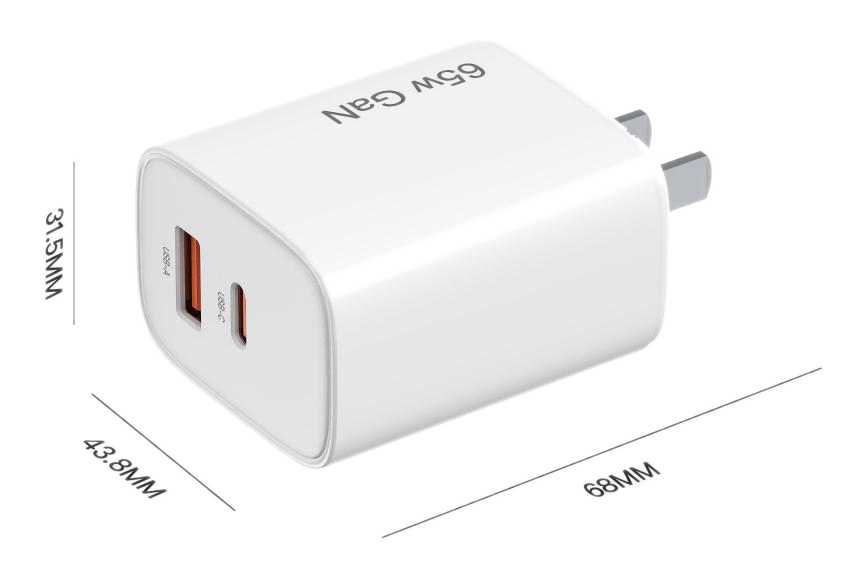

Dimensions
Tap a card to view high‑resolution dimension diagrams.
