LNESOGHK SeriesGan65ACF-109B
HK65WAC
A rounded, pillow-shaped 65W Type‑C + USB‑A GaN charger built for pocket-friendly everyday carry.
Get Wholesale Quote
Opens WhatsApp with model HK65WAC pre-filled.
Max output
65W
Ports
Type-C + USB-A
PPS
5–20V ⎓ 3A
Highlights
65W Type-C + USB-A
Rounded Compact Body
PPS 5–20V ⎓ 3A
Rounded ultra-compact body, up to ~93% efficiency (varies by load).
Specifications
Input
AC 100–240V ~ 50/60Hz, 1.3A Max
Ports
Type-C + USB-A
Shared mode
Type-C + USB-A: 5V⎓3A / 9V⎓3A / 12V⎓3A / 15V⎓3A / 20V⎓2.25A + USB-A 5V⎓2.4A (Max).
Protocols
PD 2.0, PD 3.0, PPS, QC 2.0, QC 3.0, SCP, AFC/ACF, FCP, Apple 2.4A
Certifications
CCCCE (LVD)CE (EMC)FCC (SDoC)ETLPSEUL reportRoHS
Plug options
Foldable US, CN, EU, UK
Actual performance depends on device, cable, and load. Certifications may vary by region.
Output profiles
Type‑C
5V ⎓ 3A9V ⎓ 3A12V ⎓ 3A15V ⎓ 3A20V ⎓ 3.25A
USB‑A
5V ⎓ 3A9V ⎓ 3A12V ⎓ 2.25A20V ⎓ 1.35A
PPS
5–20V ⎓ 3A

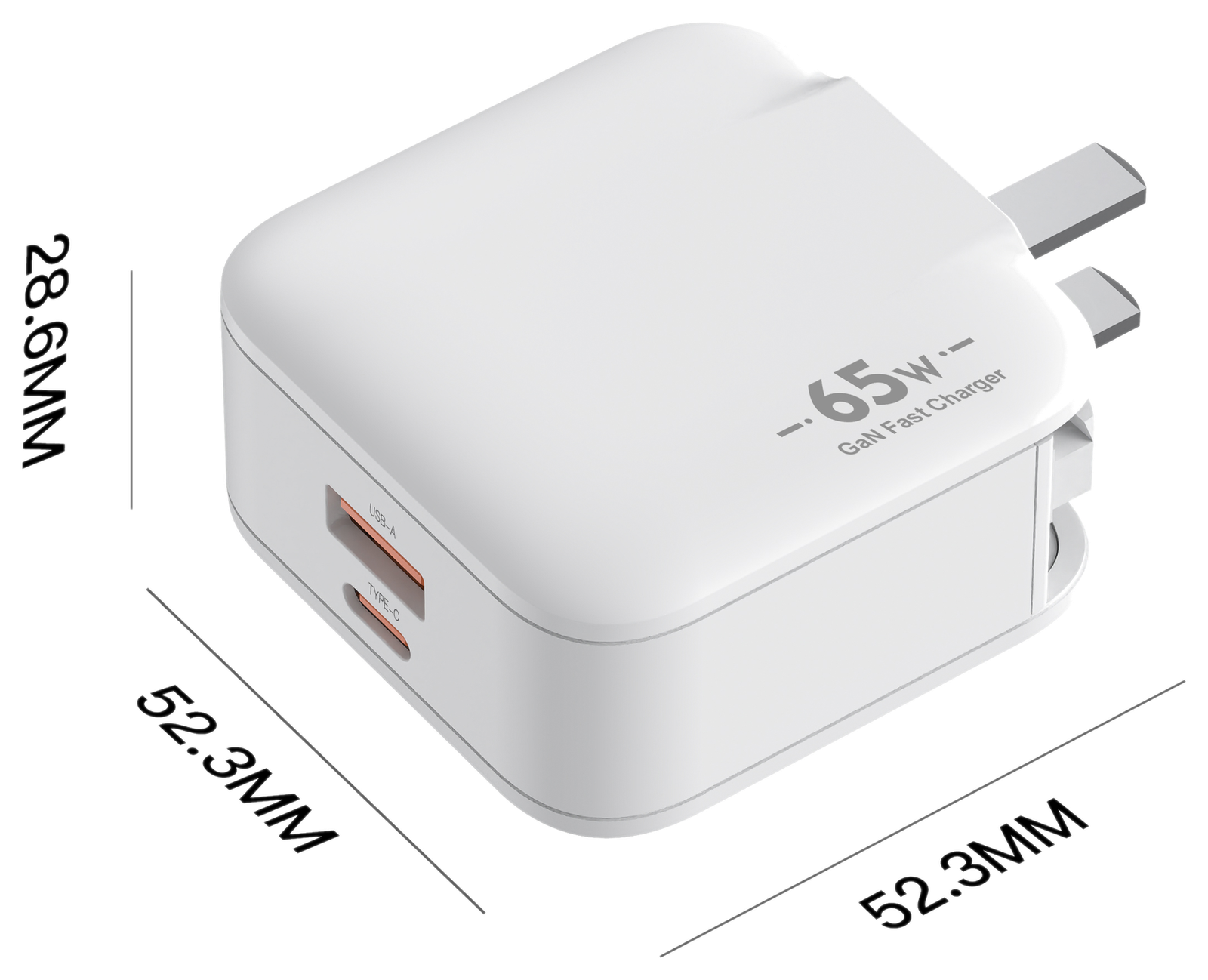

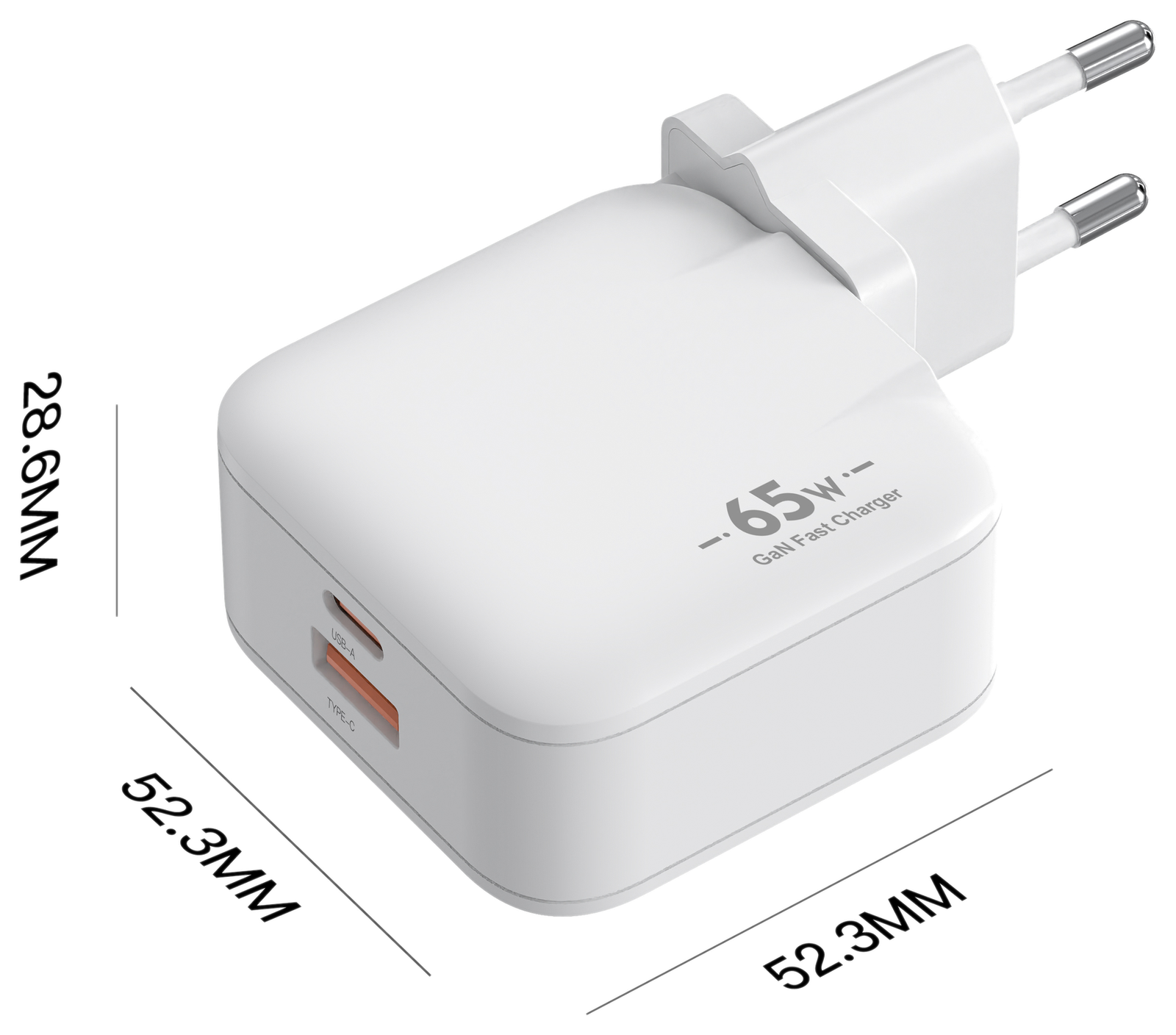

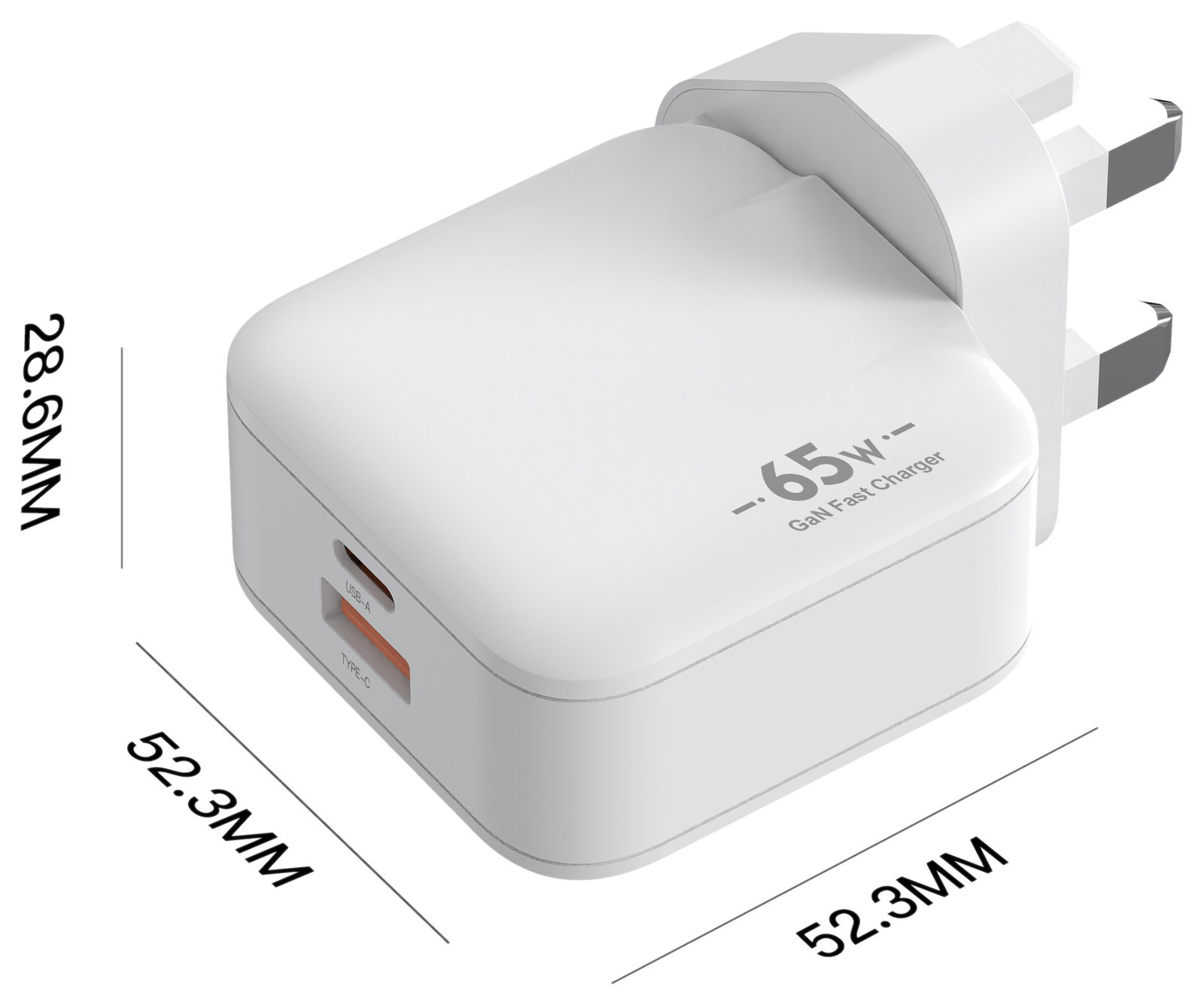

Dimensions
Tap a card to view high‑resolution dimension diagrams.
