LNESOGHK SeriesGan65ACCF-109B
HK65WACC-A
HK65 A variant (rounded compact body, 55.1 × 55.1 × 28 mm) with 2× Type‑C + USB‑A, verified electrical specifications (model Gan65ACCF-109B).
Get Wholesale Quote
Opens WhatsApp with model HK65WACC-A pre-filled.
Max output
65W
Ports
Type-C + Type-C + USB-A
PPS
5–20V ⎓ 3A
Highlights
65W 2× Type‑C + USB‑A
HK65 A Variant (55.1 × 55.1 × 28 mm)
PPS 5–20V ⎓ 3A
Up to ~93% efficiency (varies by load). Measured body (A variant): 55.1 × 55.1 × 28 mm.
Specifications
Input
AC 100–240V ~ 50/60Hz, 1.3A Max
Ports
Type-C + Type-C + USB-A
Shared mode
Type-C1 + Type-C2: 45W Max (shared) | USB-A alone: 18W Max (5V⎓3A / 9V⎓2A / 12V⎓1.5A) | Type-C1 + (Type-C2 + USB-A): 45W Max + 15W (Max) | Type-C2 + USB-A: 15W
Protocols
PD 2.0, PD 3.0, PPS, QC 2.0, QC 3.0, SCP, AFC/ACF, FCP, Apple 2.4A
Certifications
CCCCE (LVD)CE (EMC)FCC (SDoC)ETLPSEUL reportRoHS
Plug options
Foldable US, Foldable CN, EU (detachable head), UK (detachable head)
Actual performance depends on device, cable, and load. Certifications may vary by region.
Output profiles
Type‑C
5V ⎓ 3A9V ⎓ 3A12V ⎓ 3A15V ⎓ 3A20V ⎓ 3.25A
USB‑A
5V ⎓ 3A9V ⎓ 2A12V ⎓ 1.5A
PPS
5–20V ⎓ 3A

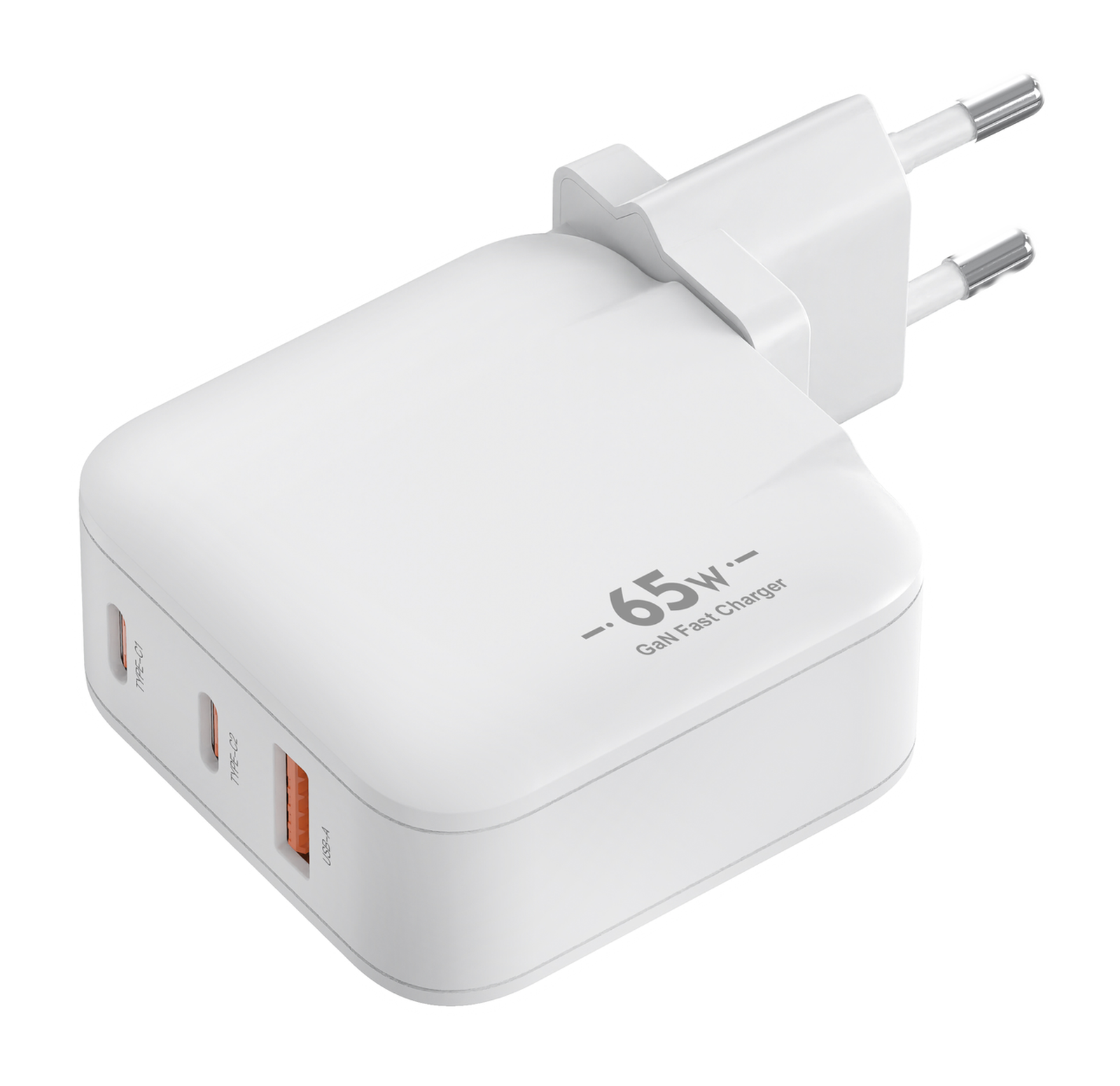

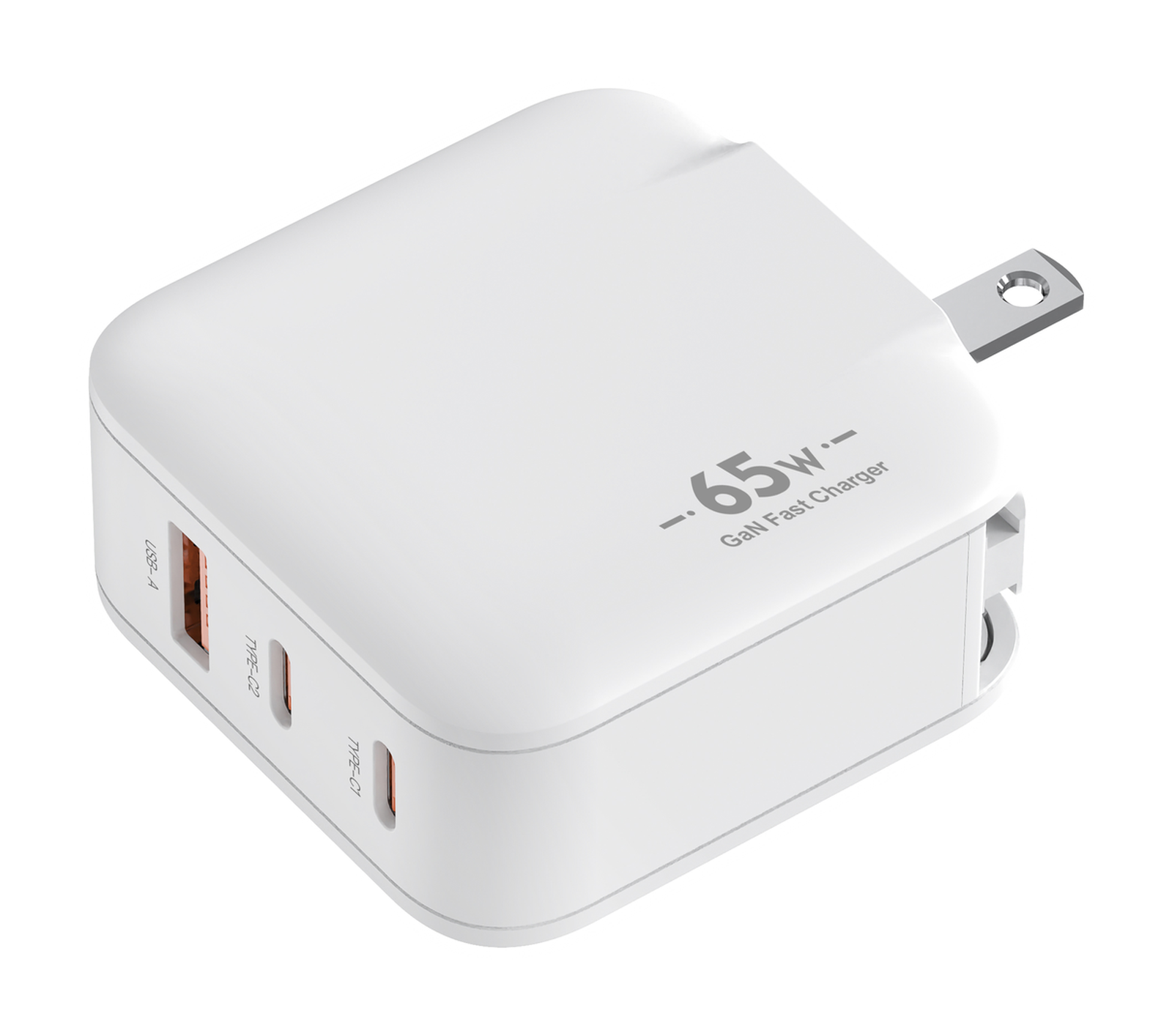

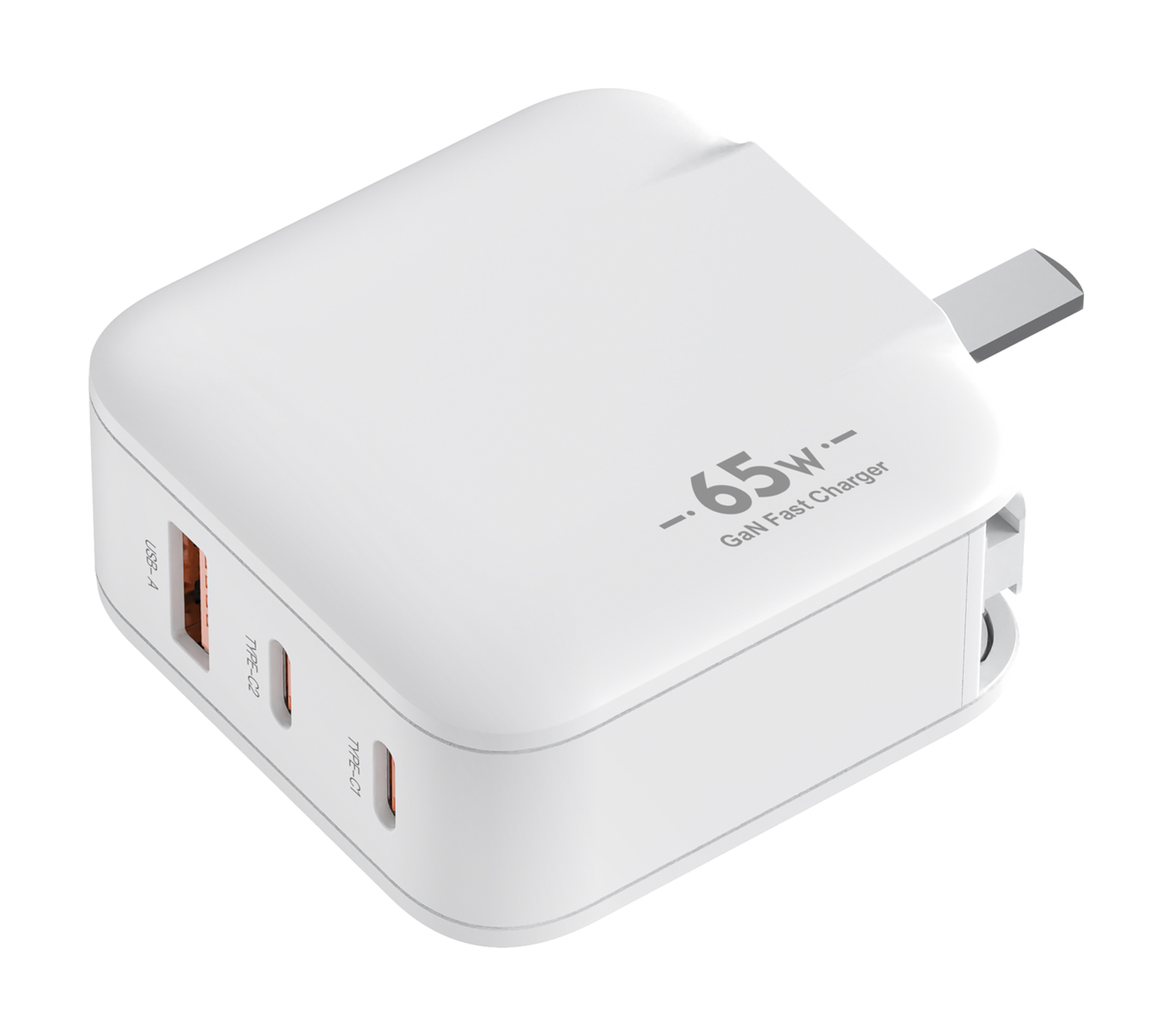

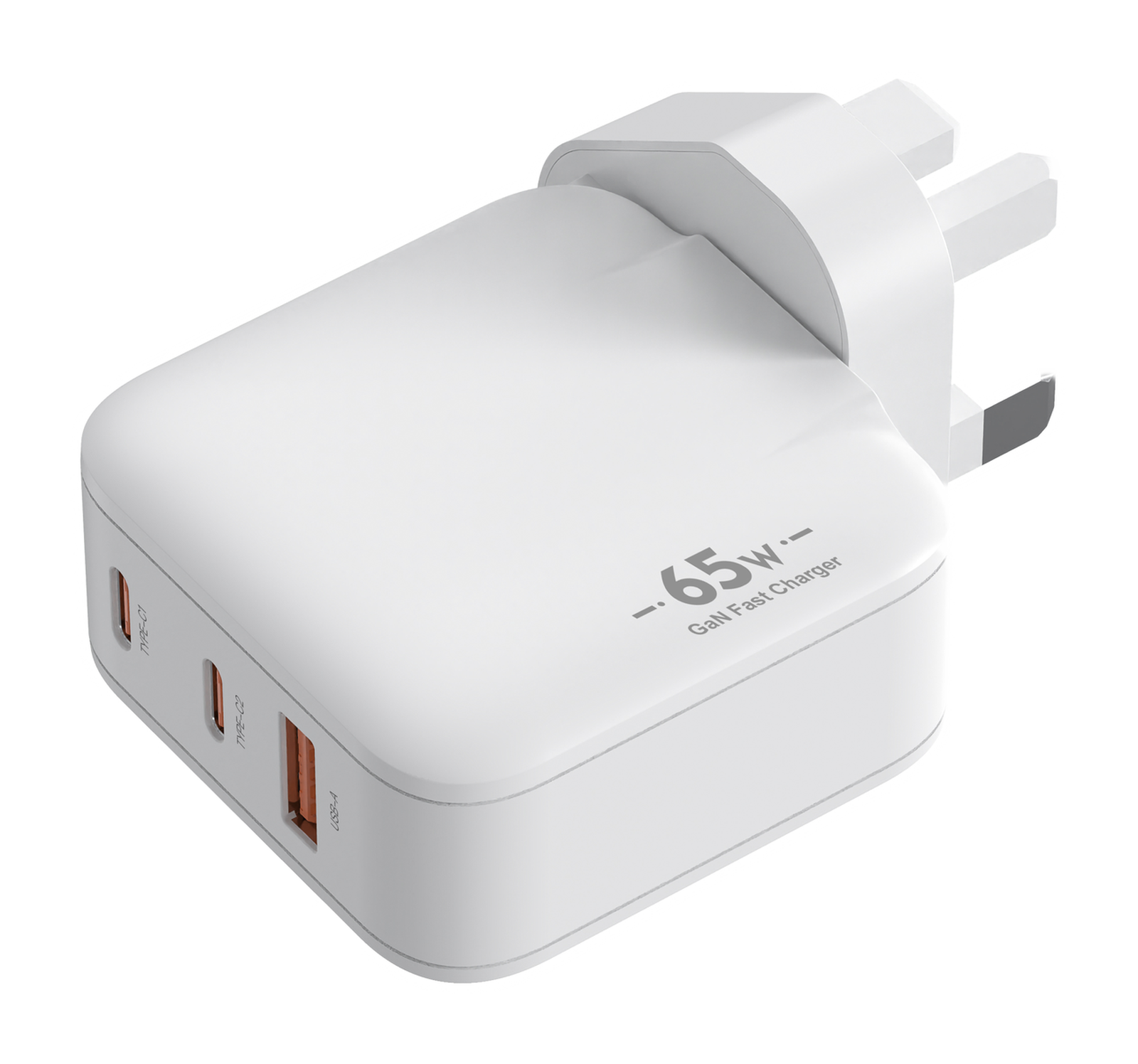

Dimensions
Tap a card to view high‑resolution dimension diagrams.
