LNESOGHK SeriesGan65CCF-109B
HK65WCC-A
HK65 A variant (rounded compact body, 52 × 52 × 27.6 mm) with dual Type‑C, verified electrical specifications (model Gan65CCF-109B).
Get Wholesale Quote
Opens WhatsApp with model HK65WCC-A pre-filled.
Max output
65W
Ports
Type-C + Type-C
PPS
5–20V ⎓ 3A
Highlights
65W Dual Type‑C
HK65 A Variant (52 × 52 × 27.6 mm)
PPS 5–20V ⎓ 3A
Up to ~93% efficiency (varies by load). Measured body (A variant): 52 × 52 × 27.6 mm.
Specifications
Input
AC 100–240V ~ 50/60Hz, 1.3A Max
Ports
Type-C + Type-C
Shared mode
Type-C1 + Type-C2: Type-C1 up to 45W (5V⎓3A / 9V⎓3A / 12V⎓3A / 15V⎓3A / 20V⎓2.25A) + Type-C2 5V⎓2.4A.
Protocols
PD 2.0, PD 3.0, PPS, QC 2.0, QC 3.0, SCP, AFC/ACF, FCP, Apple 2.4A
Certifications
CCCCE (LVD)CE (EMC)FCC (SDoC)ETLPSEUL reportRoHS
Plug options

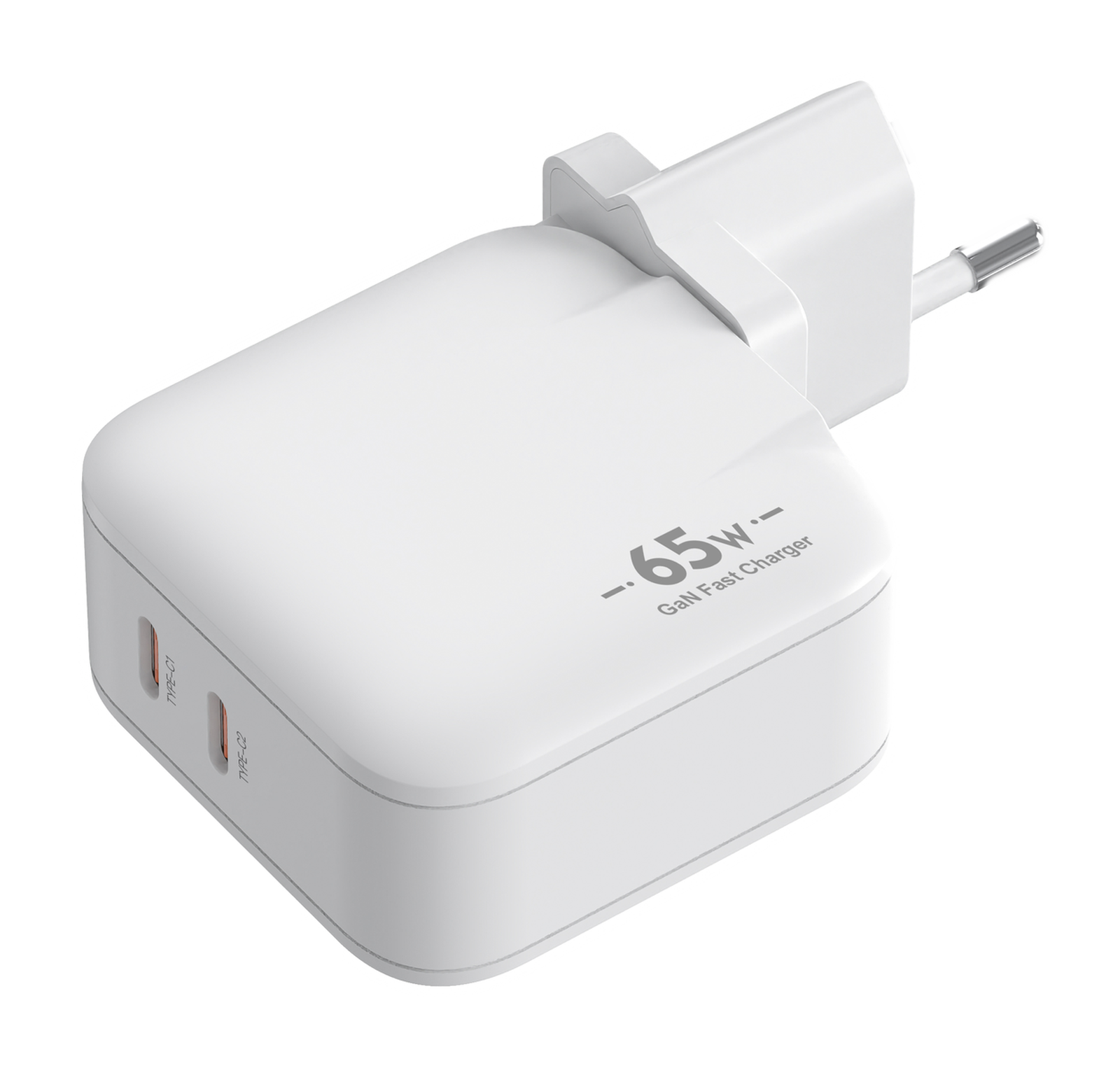

Foldable US, Foldable CN, EU (detachable head), UK (detachable head)
Actual performance depends on device, cable, and load. Certifications may vary by region.
Output profiles
Type‑C
5V ⎓ 3A9V ⎓ 3A12V ⎓ 3A15V ⎓ 3A20V ⎓ 3.25A
PPS
5–20V ⎓ 3A

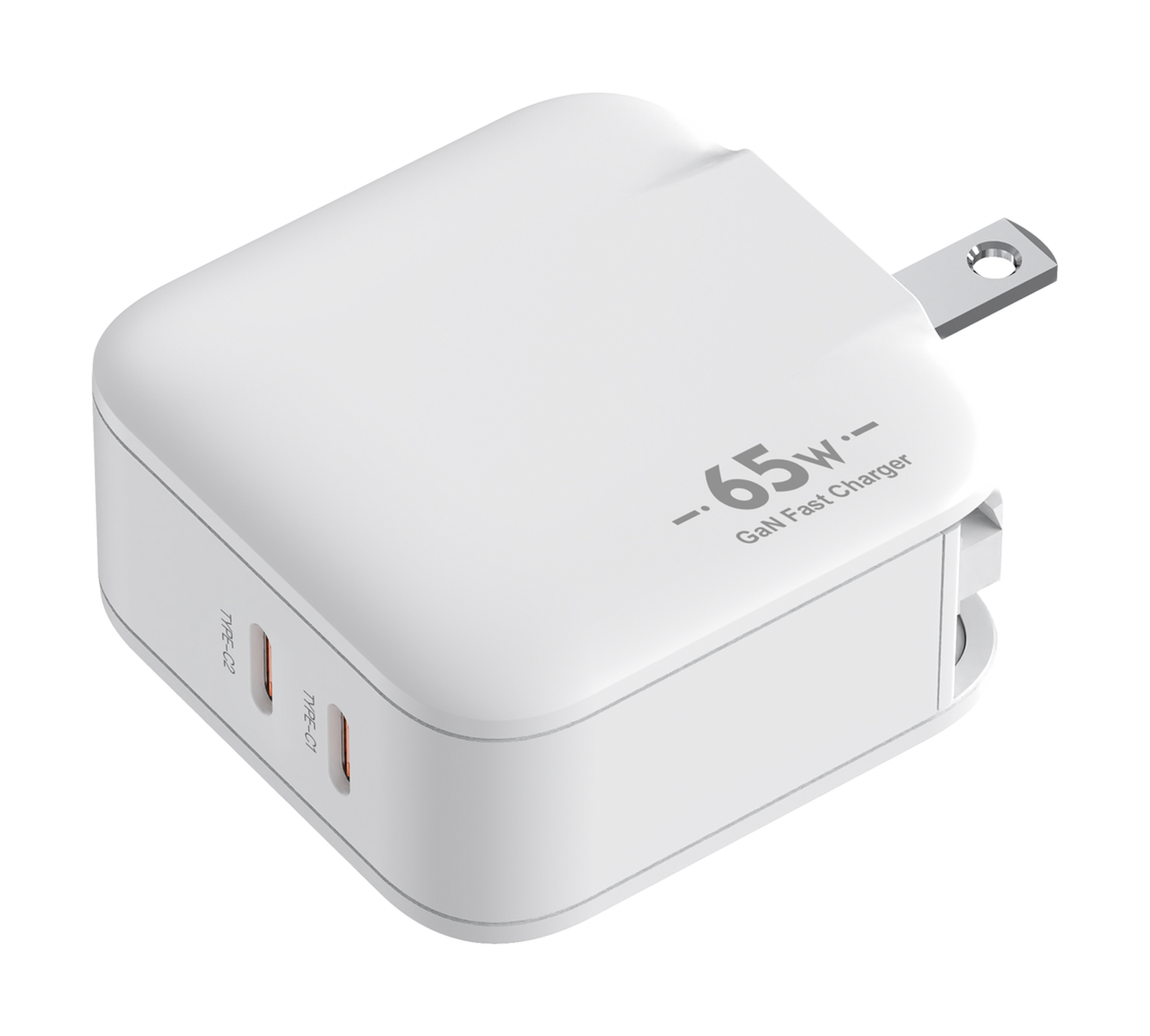

Dimensions
Tap a card to view high‑resolution dimension diagrams.
