LNESOGMB SeriesRC100WACCF-C09MB100WACC
100W 3-Port GaN Charger
A compact 100W 3-port GaN charger with dual Type‑C and USB‑A for high-power multi-device desk setups.
Get Wholesale Quote
Opens WhatsApp with model MB100WACC pre-filled.
Max output
100W
Ports
Type-C + Type-C + USB-A
PPS
5–11V ⎓ 5A
Highlights
100W 2× Type-C + USB-A
Compact Square Body
PPS 5–11V ⎓ 5A
Compact square body, up to ~93% efficiency (varies by load).
Specifications
Input
AC 100–240V ~ 50/60Hz, 2A Max
Ports
Type-C + Type-C + USB-A
Shared mode
Type-C1 + Type-C2: 65W Max + 30W (Max) | Type-C1 + (Type-C2 + USB-A): 65W Max + 15W (Max) | Type-C2 + USB-A: 15W | Type-C1 + USB-A: 65W + 18W
Protocols
PD 2.0, PD 3.0, PPS, QC 2.0, QC 3.0, SCP, AFC/ACF, FCP, Apple 2.4A
Certifications
CCCCE (LVD)CE (EMC)FCC (SDoC)RoHSUL report
Plug options
Foldable US, CN, EU, UK
Also available in: White, Black
Actual performance depends on device, cable, and load. Certifications may vary by region.
Output profiles
Type‑C
5V ⎓ 3A9V ⎓ 3A12V ⎓ 3A15V ⎓ 3A20V ⎓ 5A
USB‑A
5V ⎓ 3A9V ⎓ 2A12V ⎓ 1.5A
PPS
5–11V ⎓ 5A

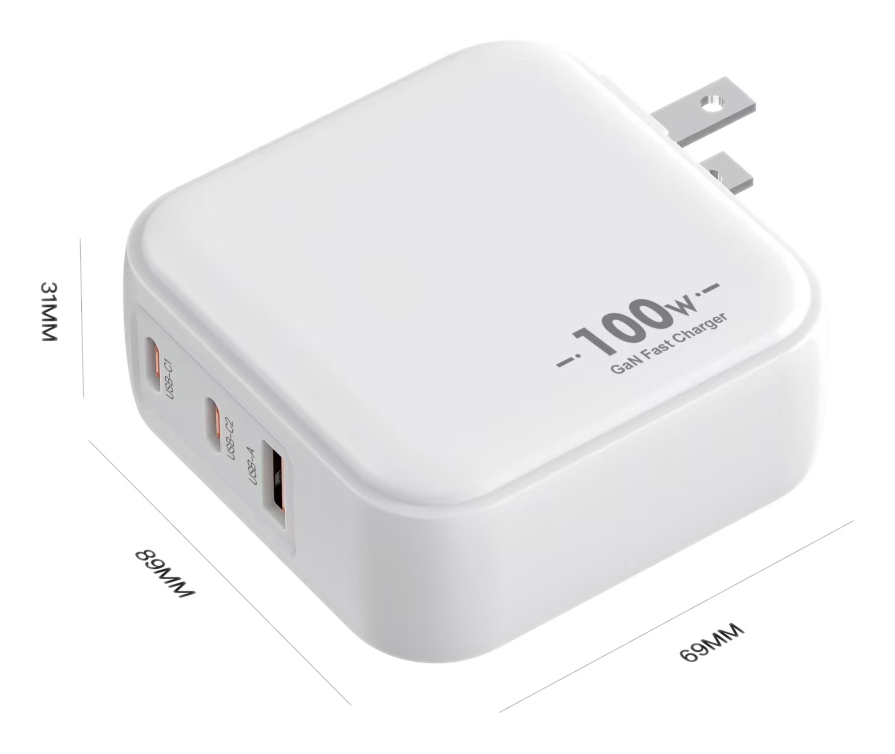

Dimensions
Tap a card to view high‑resolution dimension diagrams.
