LNESOGRC SeriesRC45WCF-109B
RC45W1C
An ultra-thin 45W Type‑C GaN charger designed for slim carry and low-profile desk setups.
Get Wholesale Quote
Opens WhatsApp with model RC45W1C pre-filled.
Max output
45W
Ports
Type-C
PPS
5–11V ⎓ 3A
Highlights
45W Type-C
Ultra-Thin Body
PPS 5–11V ⎓ 3A
Ultra-thin form factor, up to ~93% efficiency (varies by load).
Specifications
Input
AC 100–240V ~ 50/60Hz, 1A Max
Ports
Type-C
Protocols
PD 3.0, PPS, QC 3.0, SCP, AFC/ACF, FCP, Apple 2.4A
Certifications
CCCCE (LVD)CE (EMC)FCC (SDoC)RoHSUL report
Plug options
EU, UK
Also available in: White, Black
Actual performance depends on device, cable, and load. Certifications may vary by region.
Output profiles
Type‑C
5V ⎓ 3A9V ⎓ 3A12V ⎓ 3A15V ⎓ 3A20V ⎓ 2.25A
PPS
5–11V ⎓ 3A

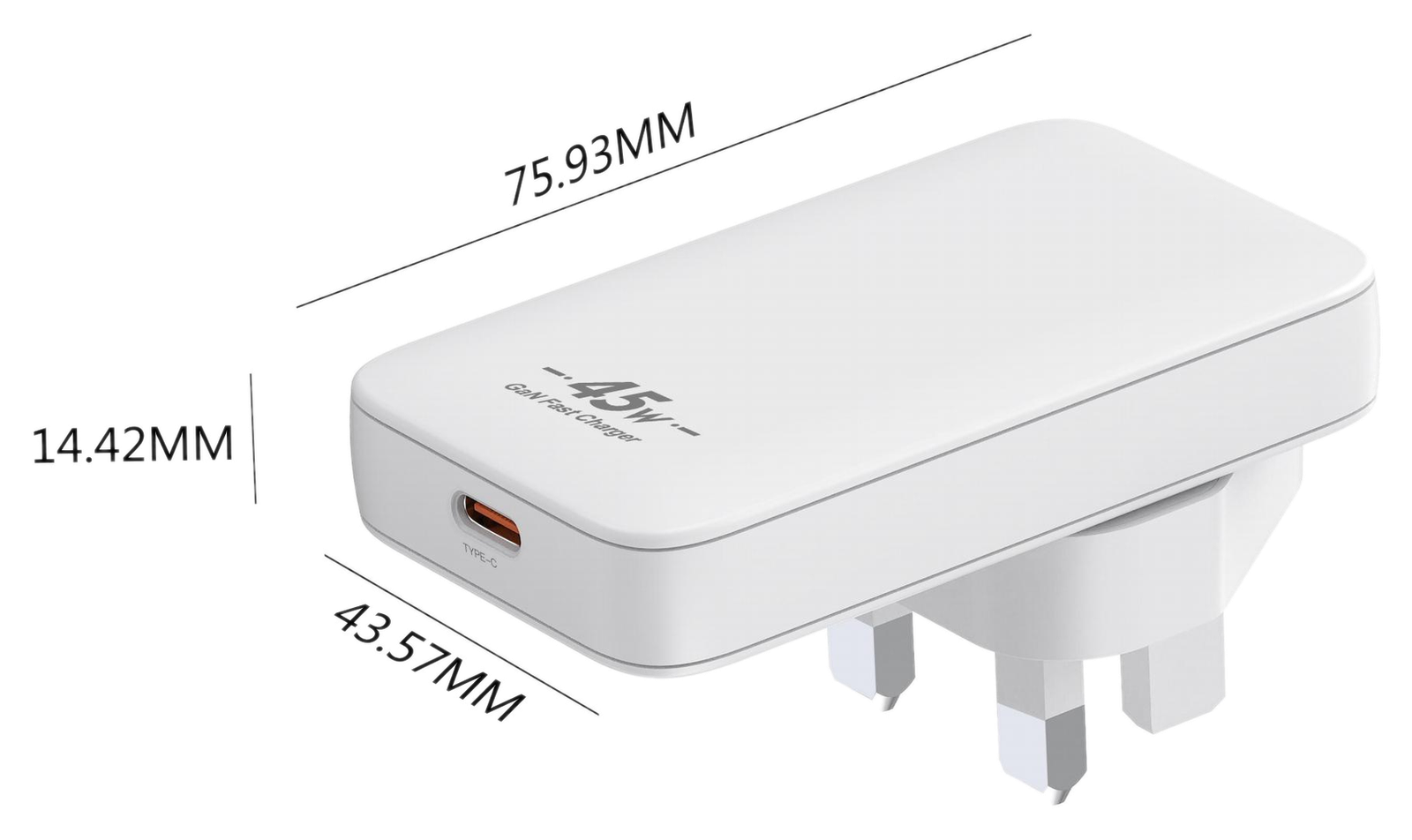

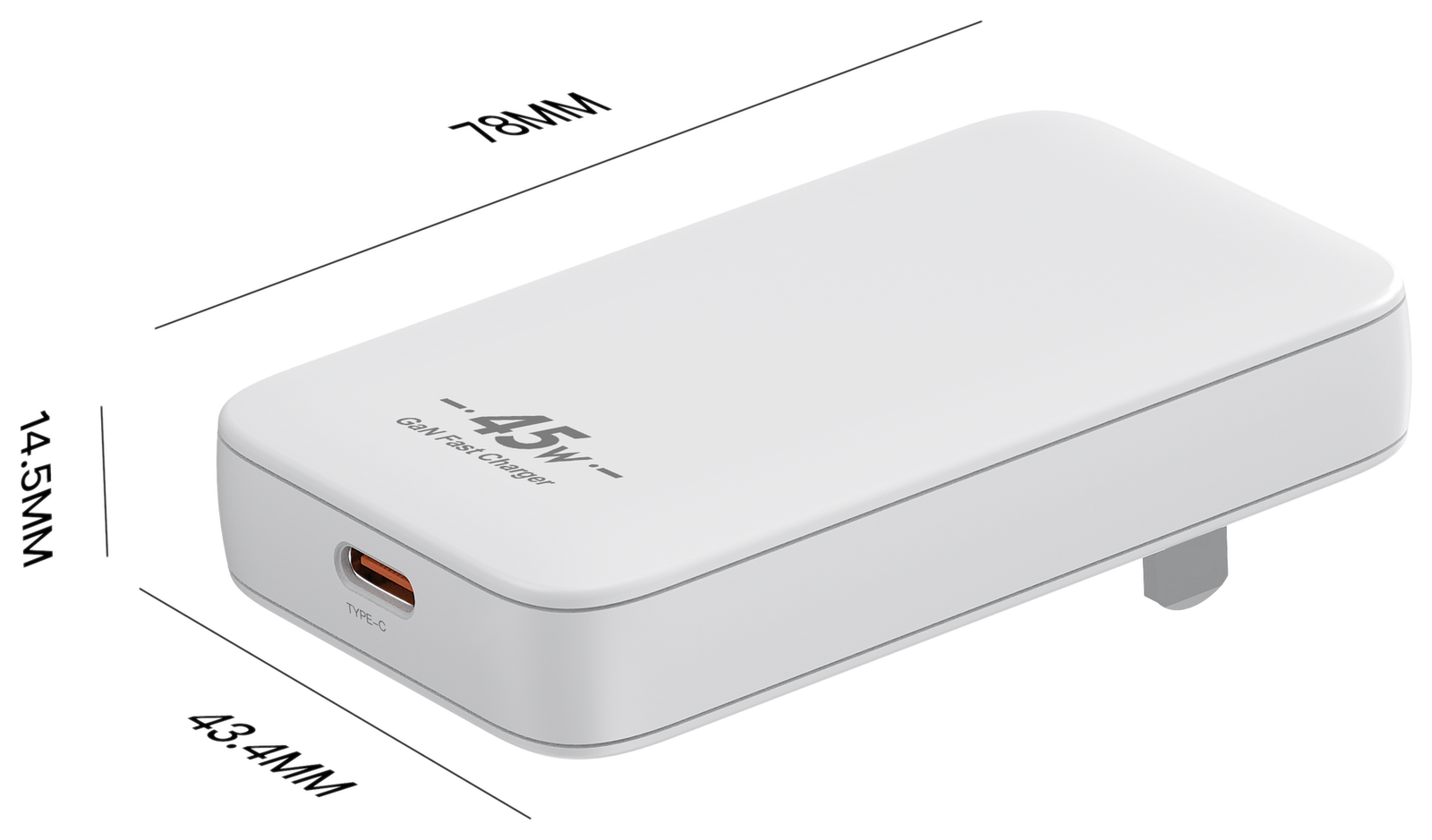

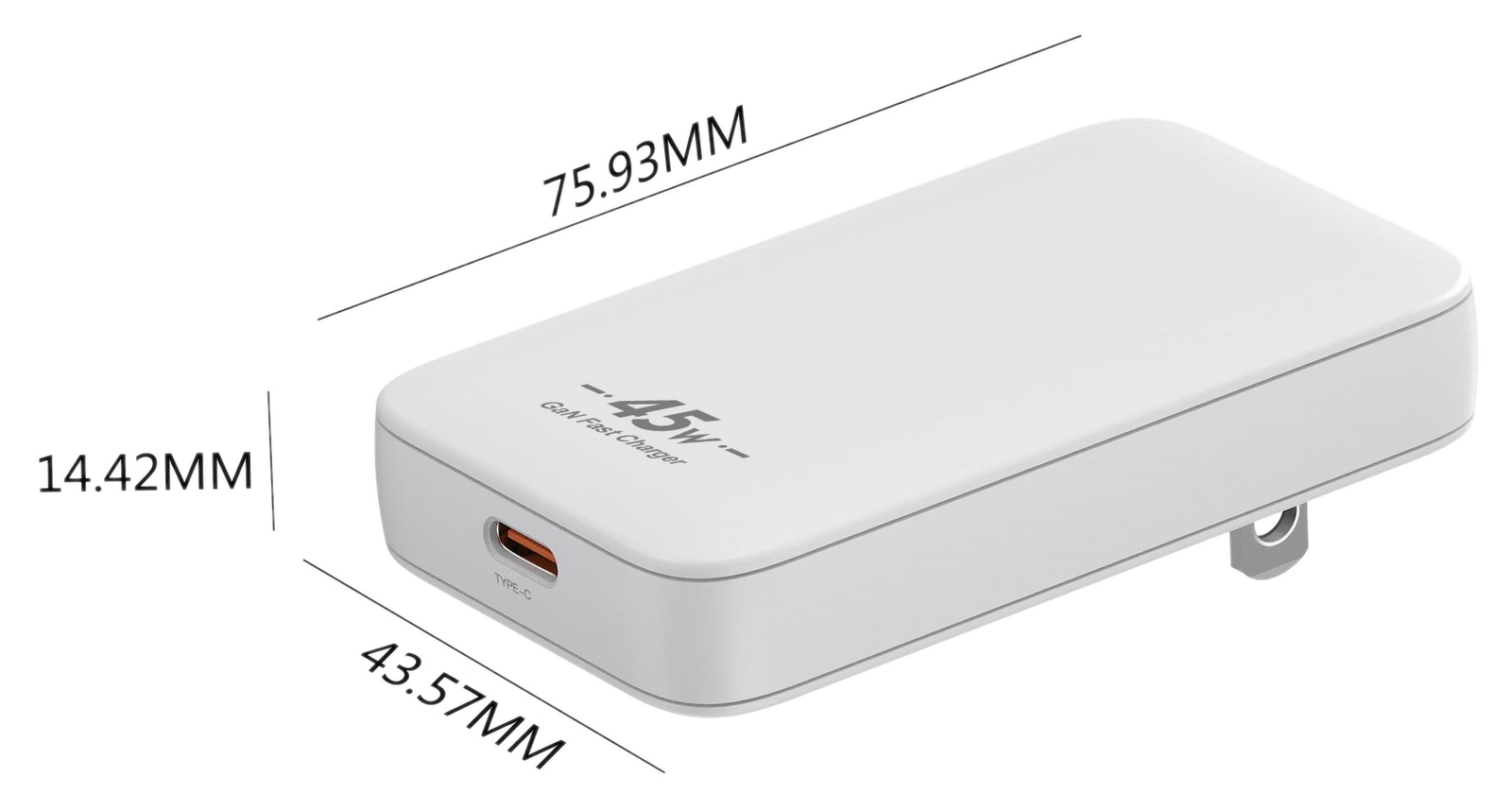

Dimensions
Tap a card to view high‑resolution dimension diagrams.
