LNESOGRC SeriesRC45WACF-109B
RC45WAC
A 45W ultra-thin dual-port charger with Type‑C + USB‑A for slim dual-device kits.
Get Wholesale Quote
Opens WhatsApp with model RC45WAC pre-filled.
Max output
45W
Ports
Type-C + USB-A
PPS
5–11V ⎓ 3A
Highlights
45W Type-C + USB-A
Ultra-Thin Body
Smart Power Sharing
Ultra-thin form factor, up to ~93% efficiency (varies by load).
Specifications
Input
AC 100–240V ~ 50/60Hz, 1A Max
Ports
Type-C + USB-A
Shared mode
Type-C + USB-A: Type-C up to 30W (5V⎓3A / 9V⎓3A / 12V⎓2.5A / 15V⎓2A / 20V⎓1.5A) + USB-A 5V⎓2.4A.
Protocols
PD 3.0, PPS, QC 3.0, SCP, AFC/ACF, FCP, Apple 2.4A
Certifications
CCCCE (LVD)CE (EMC)FCC (SDoC)RoHSUL report
Plug options
EU, UK
Also available in: White, Black
Actual performance depends on device, cable, and load. Certifications may vary by region.
Output profiles
Type‑C
5V ⎓ 3A9V ⎓ 3A12V ⎓ 3A15V ⎓ 3A20V ⎓ 2.25A
USB‑A
5V ⎓ 3A9V ⎓ 2A12V ⎓ 1.5A
PPS
5–11V ⎓ 3A

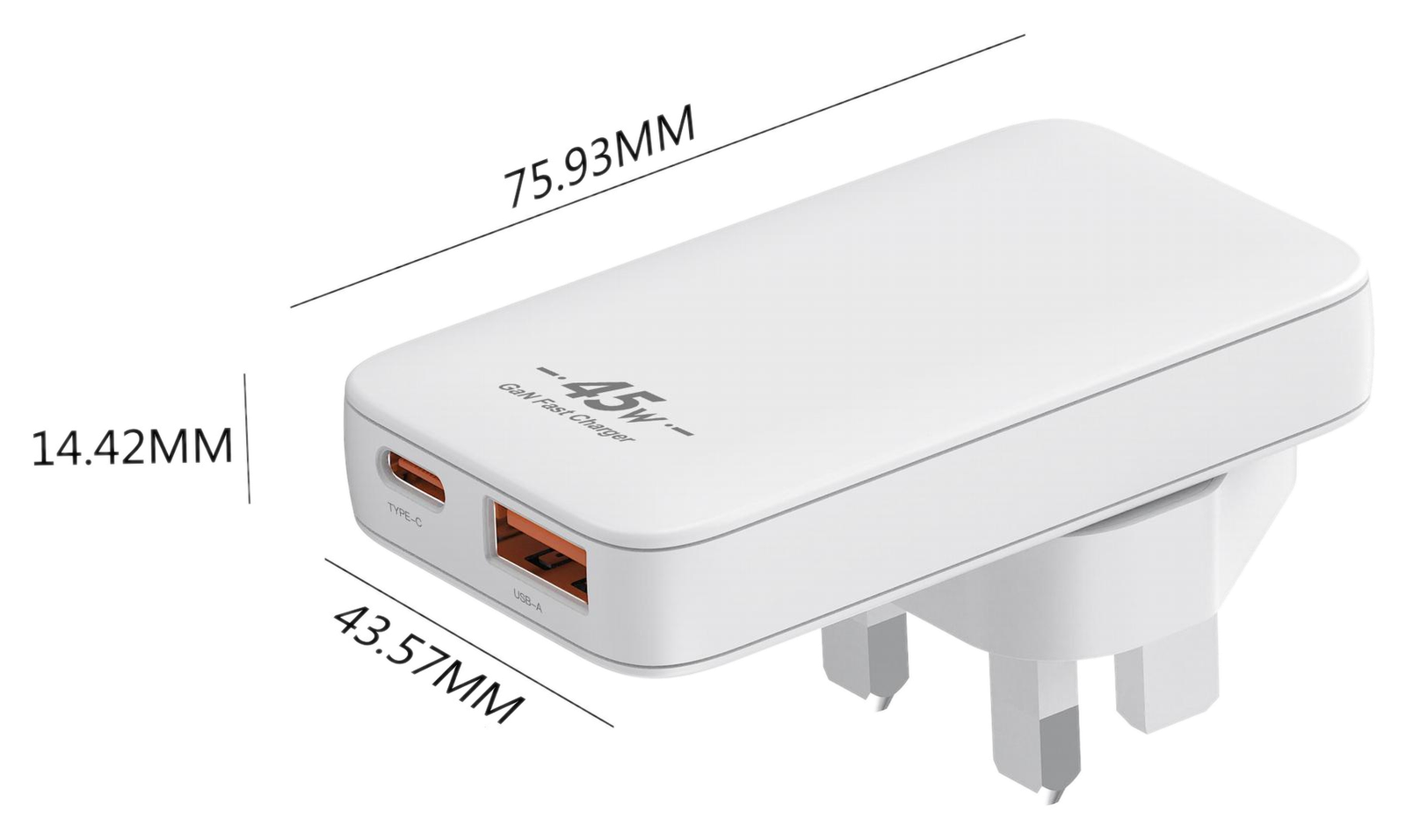

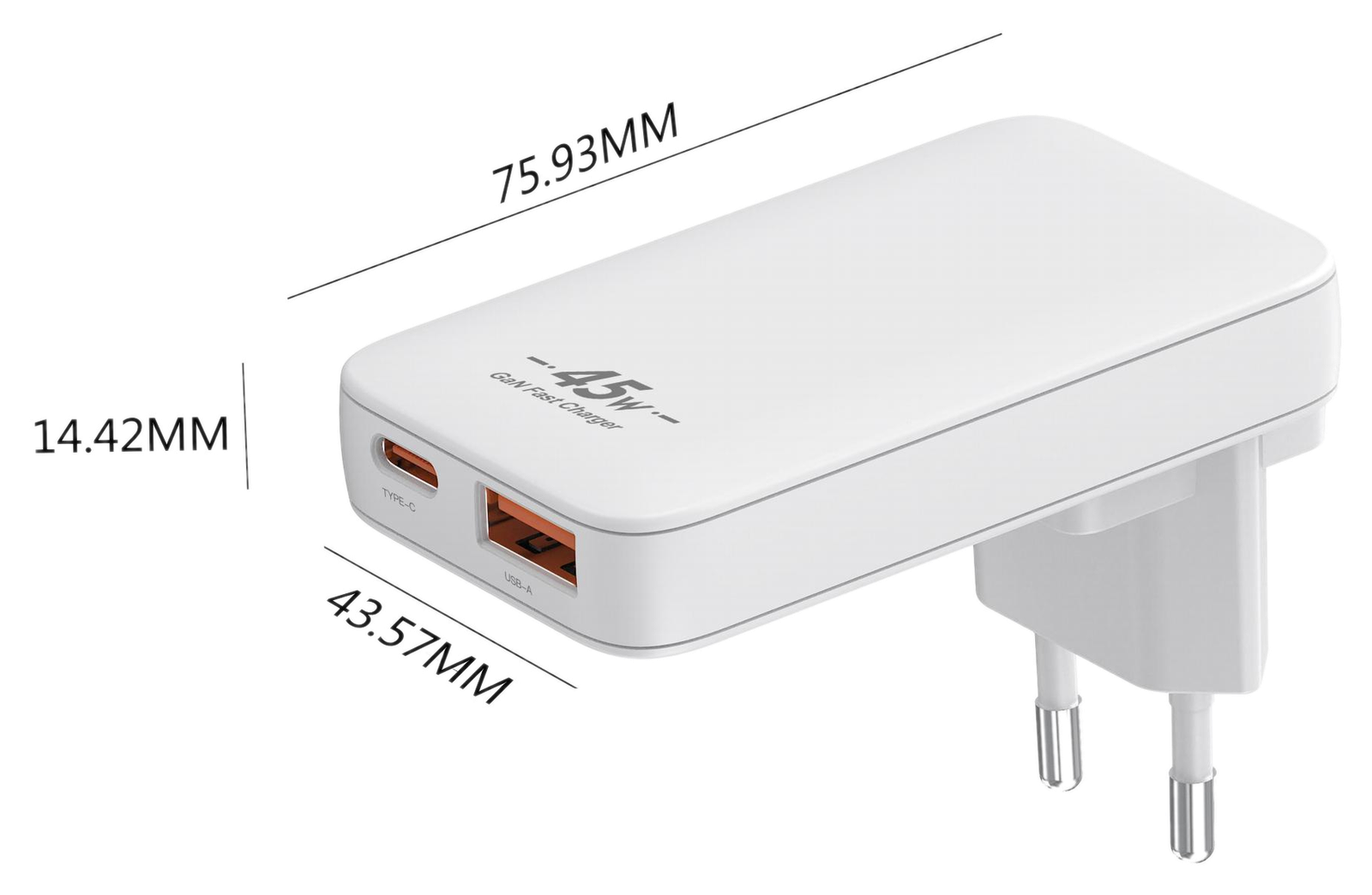

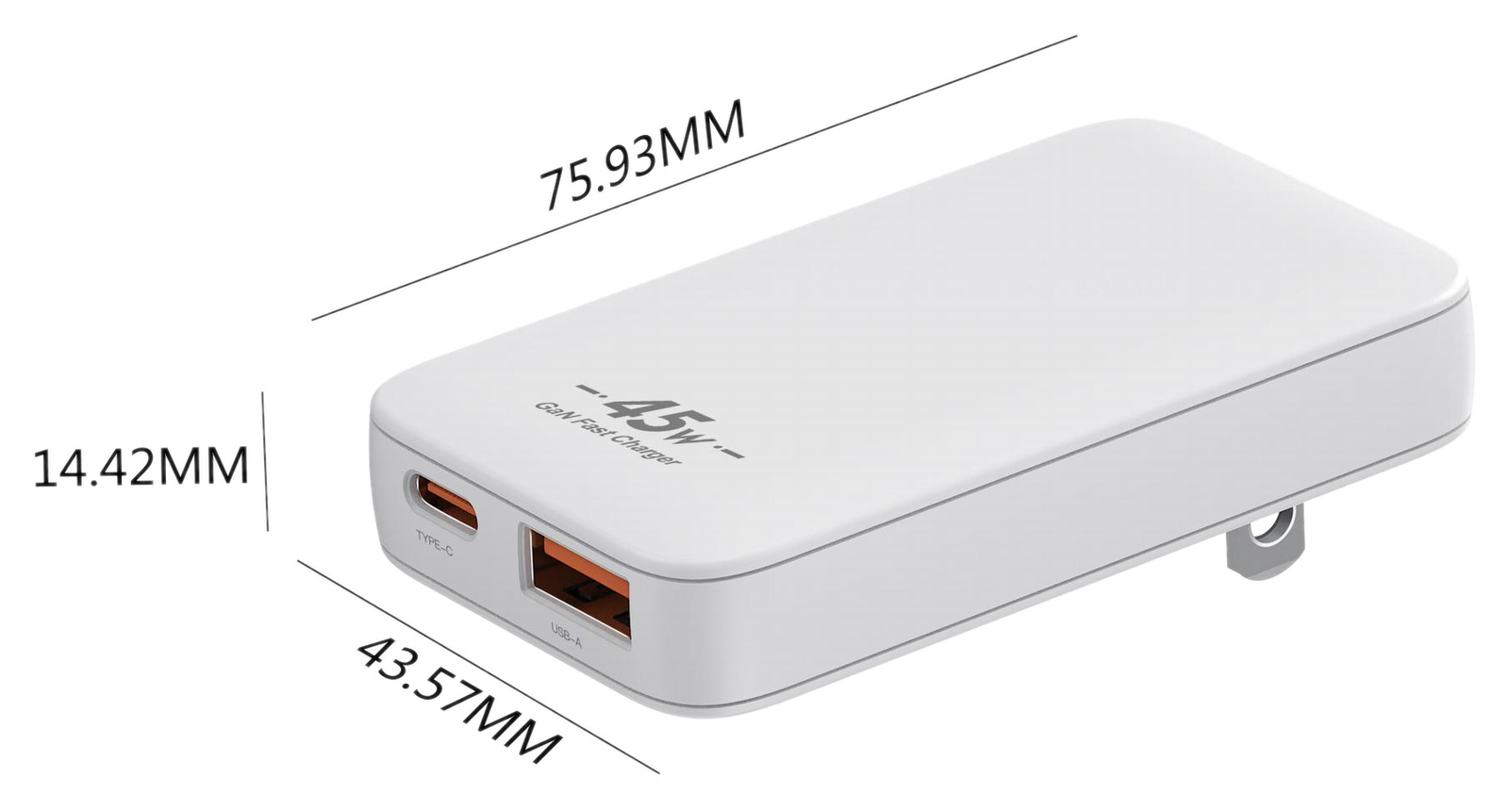

Dimensions
Tap a card to view high‑resolution dimension diagrams.
