LNESOGRC SeriesRC65WACF-109B
RC65WAC
A 65W ultra-thin Type‑C + USB‑A charger with measured body 84 × 45.5 × 14.6 mm for slim-profile travel.
Get Wholesale Quote
Opens WhatsApp with model RC65WAC pre-filled.
Max output
65W
Ports
Type-C + USB-A
PPS
5–20V ⎓ 3A
Highlights
65W Ultra-Thin
Type-C + USB-A
PPS 5–20V ⎓ 3A
84×45.5×14.6mm
Ultra-thin 65W form factor, up to ~93% efficiency (varies by load). Measured body (Foldable US): 84 × 45.5 × 14.6 mm.
Specifications
Input
AC 100–240V ~ 50/60Hz, 1.3A Max
Ports
Type-C + USB-A
Shared mode
Type-C + USB-A: Type-C 5V⎓3A / 9V⎓3A / 12V⎓3A / 15V⎓3A / 20V⎓2.25A + USB-A 5V⎓2.4A.
Protocols
PD 2.0, PD 3.0, PPS, QC 2.0, QC 3.0, SCP, AFC/ACF, FCP, Apple 2.4A
Certifications
CCCCE (LVD)CE (EMC)FCC (SDoC)RoHSUL report
Plug options
Foldable US, EU, UK, CN, AU
Actual performance depends on device, cable, and load. Certifications may vary by region.
Output profiles
Type‑C
5V ⎓ 3A9V ⎓ 3A12V ⎓ 3A15V ⎓ 3A20V ⎓ 3.25A
USB‑A
5V ⎓ 3A9V ⎓ 3A12V ⎓ 2.25A20V ⎓ 1.35A
PPS
5–20V ⎓ 3A

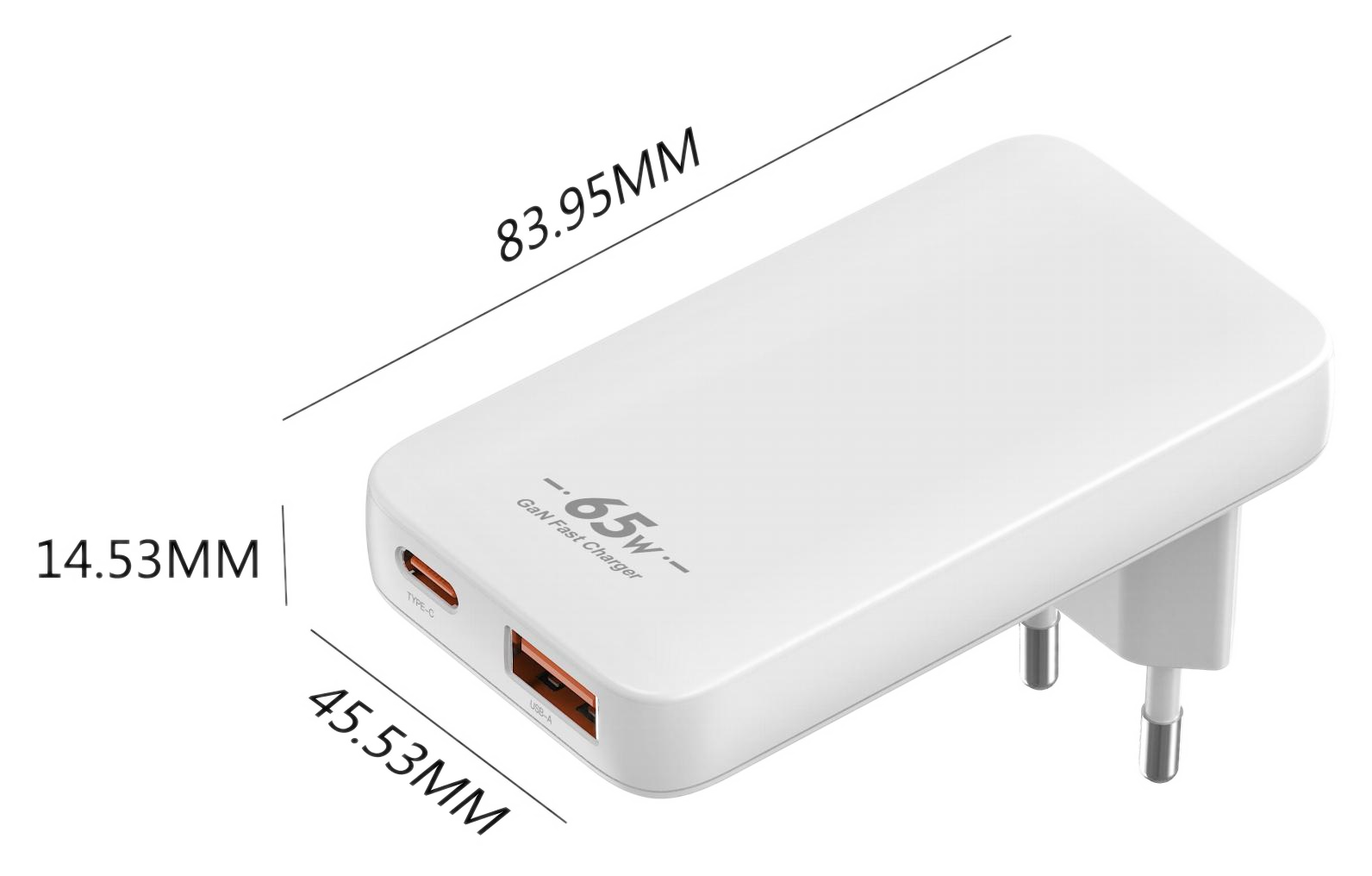

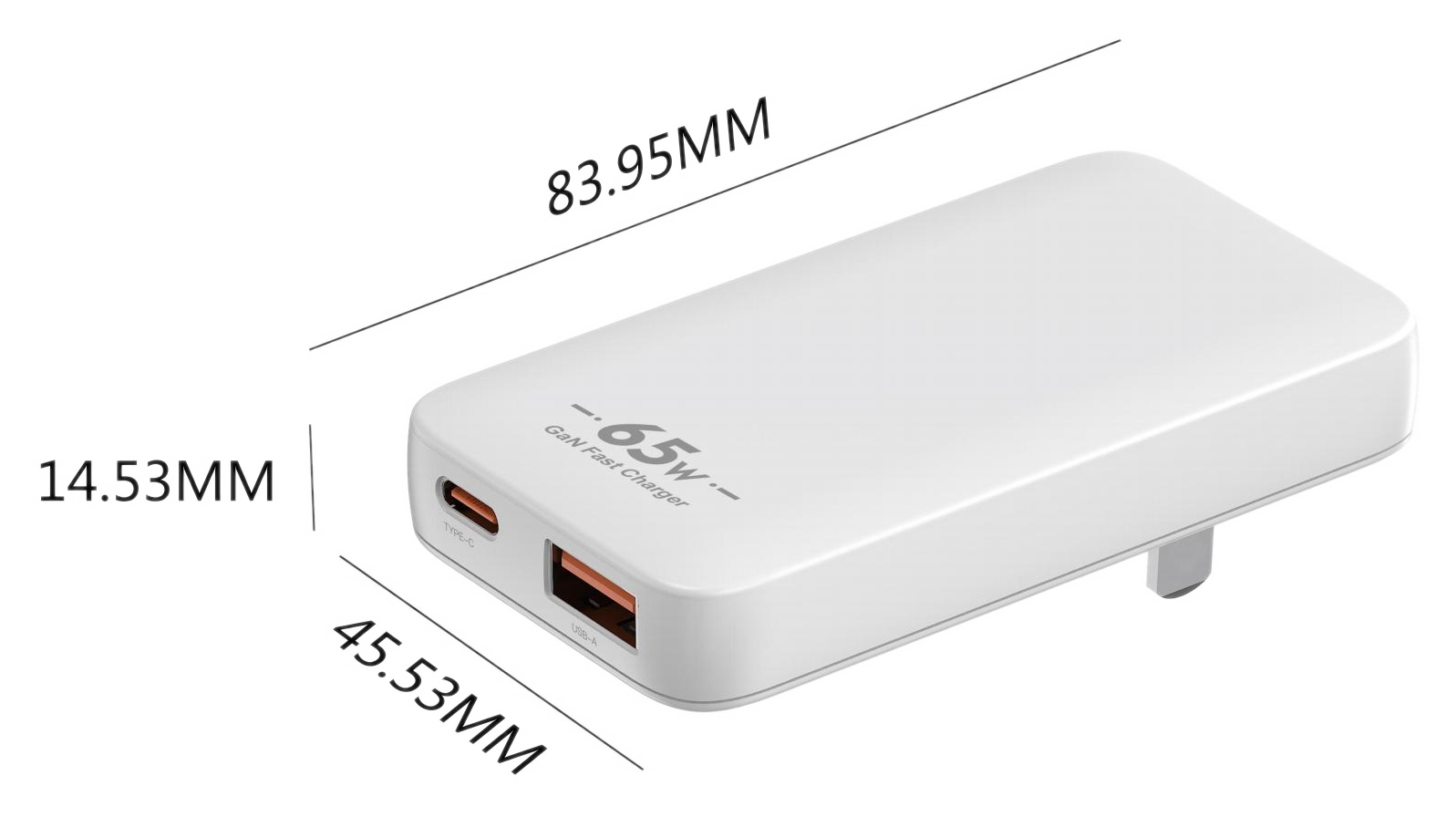

Dimensions
Tap a card to view high‑resolution dimension diagrams.
