LNESOGRC SeriesRC65WCCF-109B
RC65WCC
A 65W ultra-thin dual Type‑C charger with measured body 84 × 45.5 × 14.6 mm, optimized for slim carry and dual-device PD/PPS setups.
Get Wholesale Quote
Opens WhatsApp with model RC65WCC pre-filled.
Max output
65W
Ports
Type-C + Type-C
PPS
5–20V ⎓ 3A
Highlights
65W Ultra-Thin Dual Type-C
PPS 5–20V ⎓ 3A
84×45.5×14.6mm
Ultra-thin 65W form factor, up to ~93% efficiency (varies by load). Measured body (Foldable US): 84 × 45.5 × 14.6 mm.
Specifications
Input
AC 100–240V ~ 50/60Hz, 1.3A Max
Ports
Type-C + Type-C
Shared mode
Type-C1 + Type-C2: Type-C1 up to 45W (5V⎓3A / 9V⎓3A / 12V⎓3A / 15V⎓3A / 20V⎓2.25A) + Type-C2 5V⎓2.4A.
Protocols
PD 2.0, PD 3.0, PPS, QC 2.0, QC 3.0, SCP, AFC/ACF, FCP, Apple 2.4A
Certifications
CCCCE (LVD)CE (EMC)FCC (SDoC)RoHSUL report
Plug options
Foldable US, EU, UK, CN, AU
Actual performance depends on device, cable, and load. Certifications may vary by region.
Output profiles
Type‑C
5V ⎓ 3A9V ⎓ 3A12V ⎓ 3A15V ⎓ 3A20V ⎓ 3.25A
PPS
5–20V ⎓ 3A

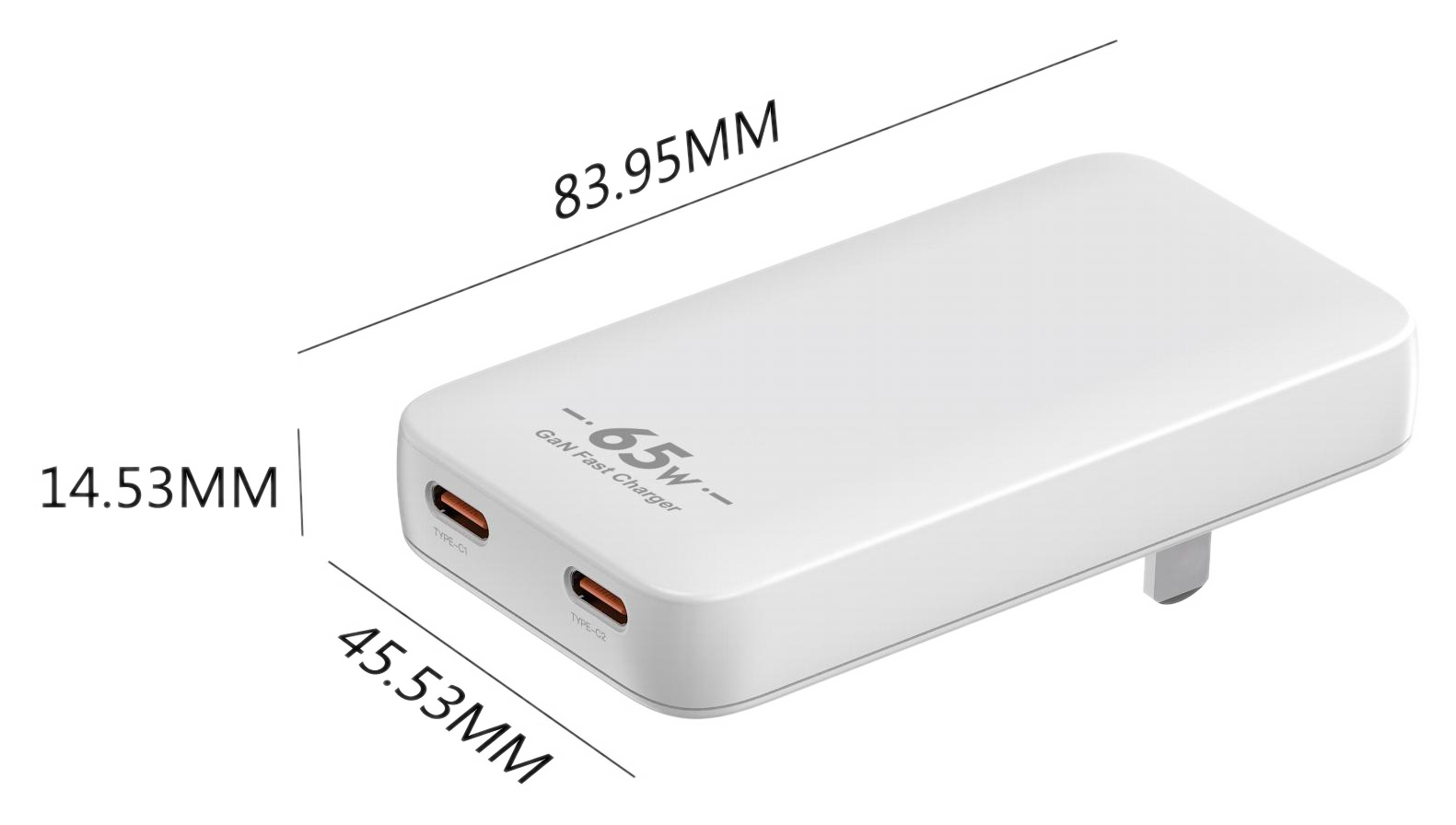

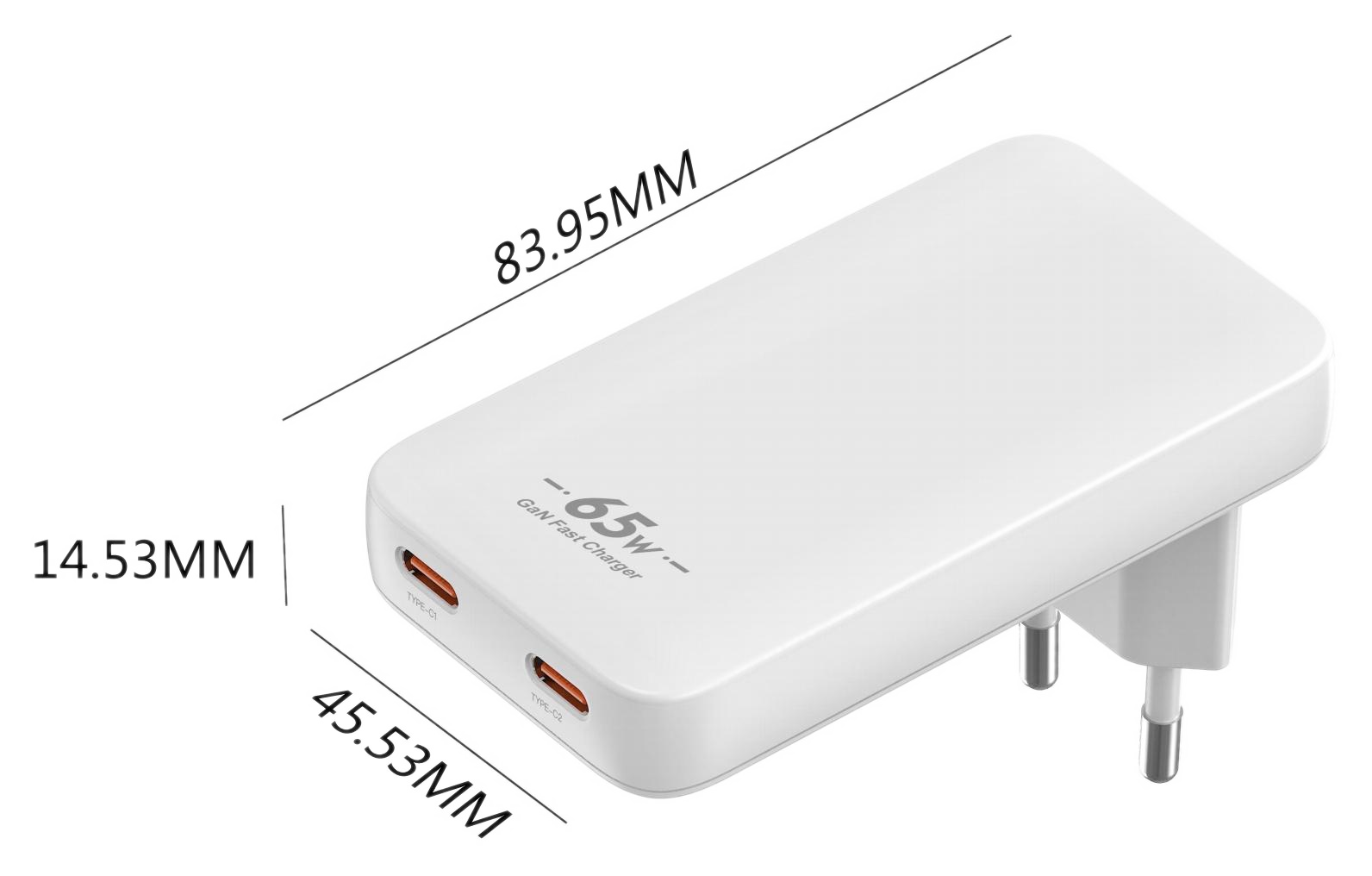

Dimensions
Tap a card to view high‑resolution dimension diagrams.
